Longspan Shelving

Longspan shelving

Longspan shelving lends itself to heavy duty use in storeroom and warehousing environments. We can offer TS Longspan - your perfect solution for extreme strength and versatiity at a competitive price. The Epsivol system allows you to protect your stored products with mesh, and if you require deep shelves with wide bays for manual picking applications, then Unishelf with its unique metal deck shelving offers many advantages.

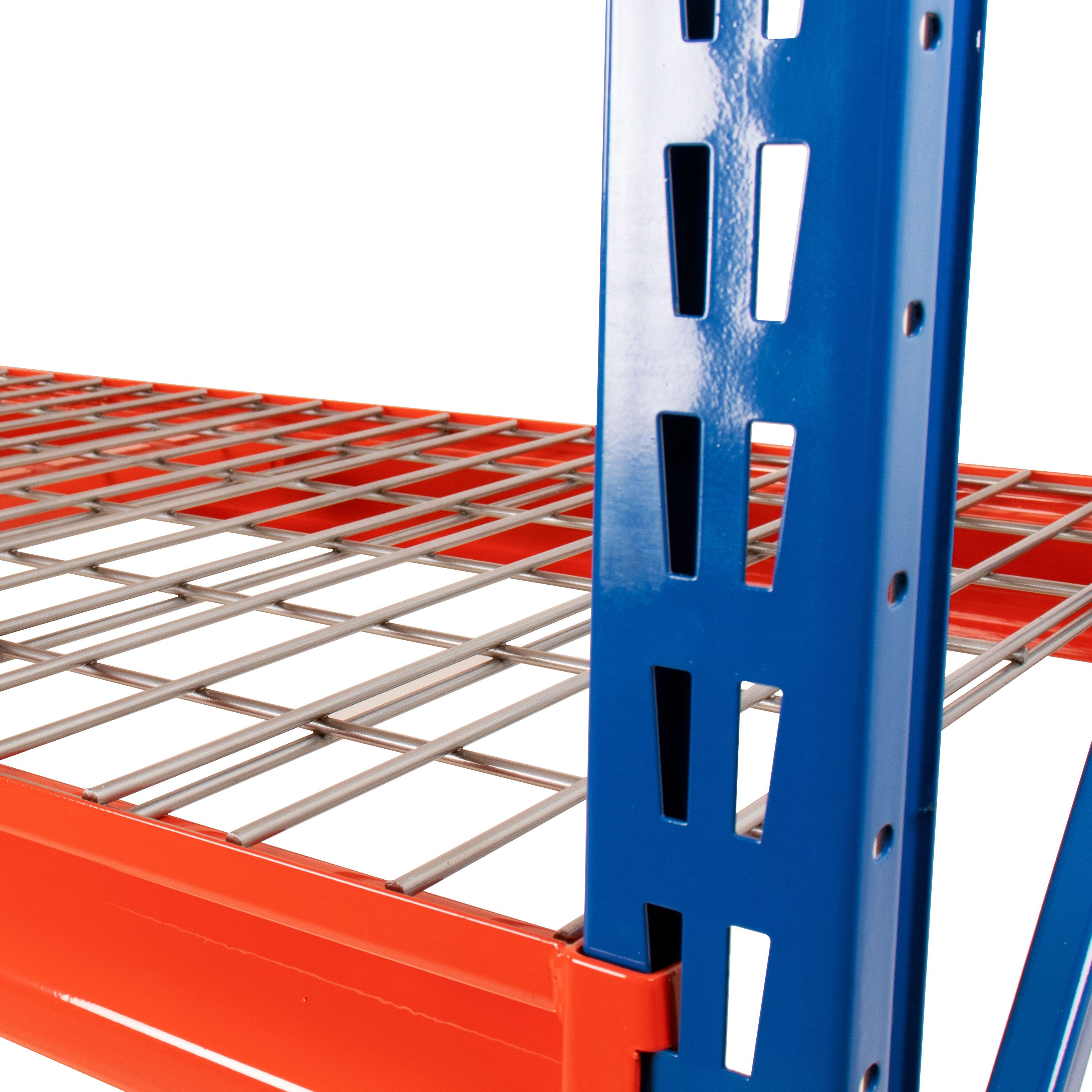

TS Longspan

Extremely strong, heavy duty systems that's easy to build.

Heights	Standard Bay Height (mm) 1984, 2492, 3000, 3508, 4016
Widths	Widths (mm) 1229, 1534, 1839, 2144, 2449, 2754
Depths	Depths (mm) 471, 624, 776, 928, 1233
Application	Environment: Warehouse, Storeroom Usage: Heavy Duty Racking
Construction	Frames: Steel Blue RAL5010 Beams: Steel Orange RAL2002 Shelves Chipboard decking Steel Mesh decking Solid Steel decking
Loadings	Shelf UDL up to 950kg Max Bay Load 3900kg

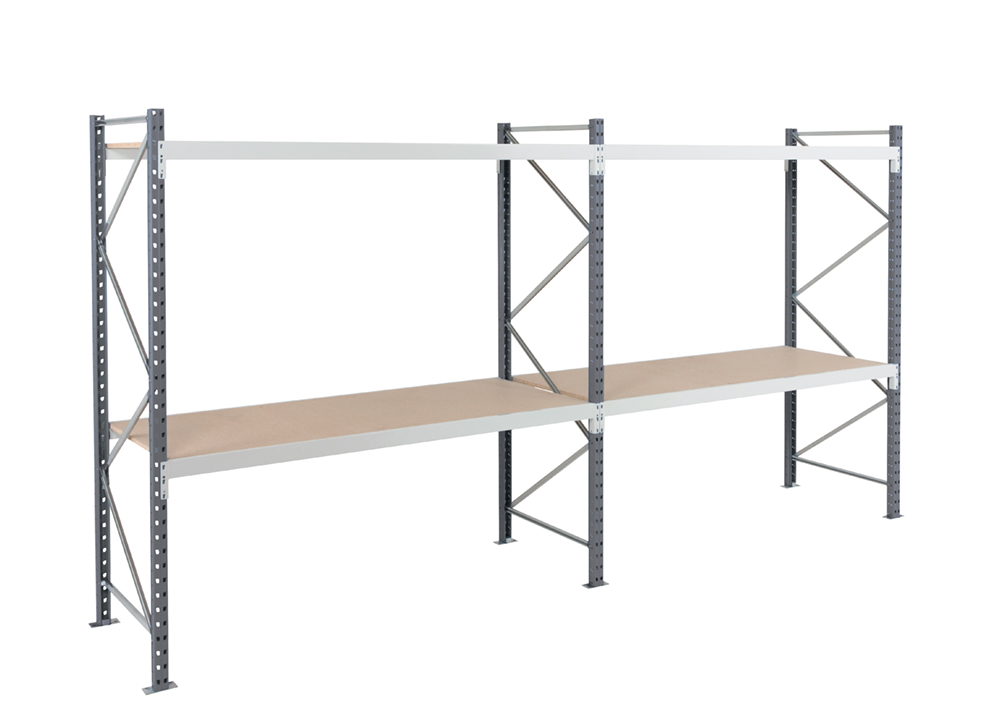

Episvol shelving

Extremely strong, heavy duty systems that's easy to build.

Heights	Standard Bay Height (mm) 1750, 2000, 2250, 2500, 2750, 3000, 3250, 3500, 3750, 4000, 4250, 4500
Widths	Widths (mm) 1000, 1250, 1500, 1800, 2000, 2250, 2500, 2700, 3000
Depths	Depths (mm) 400, 500, 600, 700, ,800, 900, 1000, 1100, 1200
Application	Environment: Hand loaded box storage Usage: Heavy Duty Racking
Construction	Frames: Steel Anthracite Beams: Steel Light Grey Shelves Chipboard, MFC, Metal shelf panels, wire
Loadings	Shelf UDL up to 1500kg Max Bay Load 4500kg

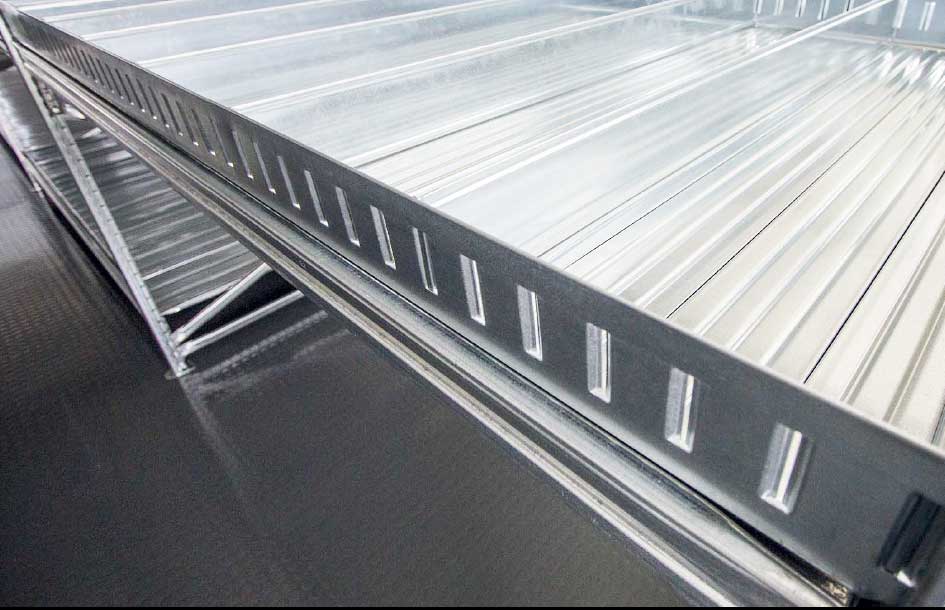

Unishelf

Extremely strong, heavy duty systems that's easy to build.

Heights	Standard Bay Height (mm) 2000, 2500, 3000
Widths	Widths (mm) 1200, 1500, 1800, 2100, 2400, 2700
Depths	Depths (mm) 600, 900, 1200
Application	Environment: Hand loaded box storage Usage: Heavy Duty Racking
Construction	Frames: Steel Galvanised steel, indoor use Beams: Steel Galvanised steel Shelves Galvanised steel
Loadings	Shelf UDL up to 1200mm width 600mm - 400kg 900mm - 300kg 1200mm - 200kg 1500mm width: 600mm - 575kg 900mm - 375kg 1200mm - 250kg 1800mm width: 600mm - 690kg 900mm - 460kg 1200mm - 300kg 2100mm width: 600mm - 800kg 900mm - 525kg 1200mm - 350kg 2400mm width: 600mm - 650kg 900mm - 600kg 1200mm - 400kg 2700mm width: 600mm - 500kg 900mm - 500kg 1200mm - 450kg Bay Load: 3000kg per bay
